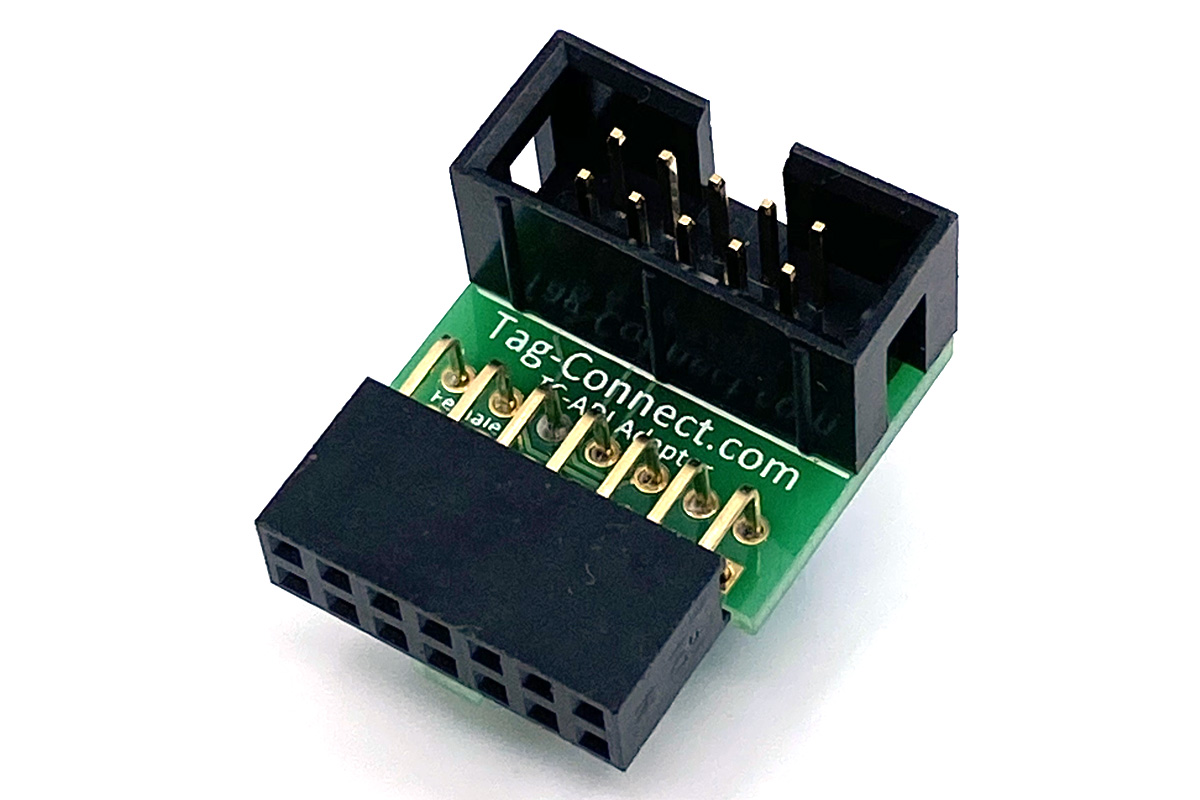

TC-ADI Analog Devices SHARC Adapter

TC-ADI Analog Devices SHARC Adapter$29.95 AVAILABLE TC-ADI Analog Devices SHARC Adapter quantity Add to cart SKU: TC-ADI Categories: Adapters, Adapters for FPGAs/DSPs/CPLDs Description The TC-ADI adapter works with Analog Devices SHARC and other ADI devices. It is designed to work with our 10-pin TC2050-IDC and TC2050-IDC-NL cables and gives the same 10-pin target board footprint for ARM JTAG that we’ve established with our TC2050-ARM2010 adapter. See also the TC-ADI-M adapter. 10-Pin Header for TC2050-IDC (-NL) 14-Pin 90° Female Connector with PCB Locating Tab VDDIO 1 2 TMS GND 1 2 EMU GND 3 4 TCK GND 3 4 GND GND 5 6 TDO VDDIO 5 6 TMS GND 7 8 TDI GND 7 8 TCK TRST 9 10 EMU GND 9 10 TRST GND 11 12 TDI GND 13 14 TDO   Related products TC-LATTICE $29.95 Add to cart TC-C2000-F-180 $39.00 Add to cart TC2050-XILINX $29.95 Add to cart TC2050-XILINX-M TC-ADI-M Analog Devices SHARC Adapter
