TC-C2000-F-90 Adapter to use TC2050-IDC with TI DSP’s

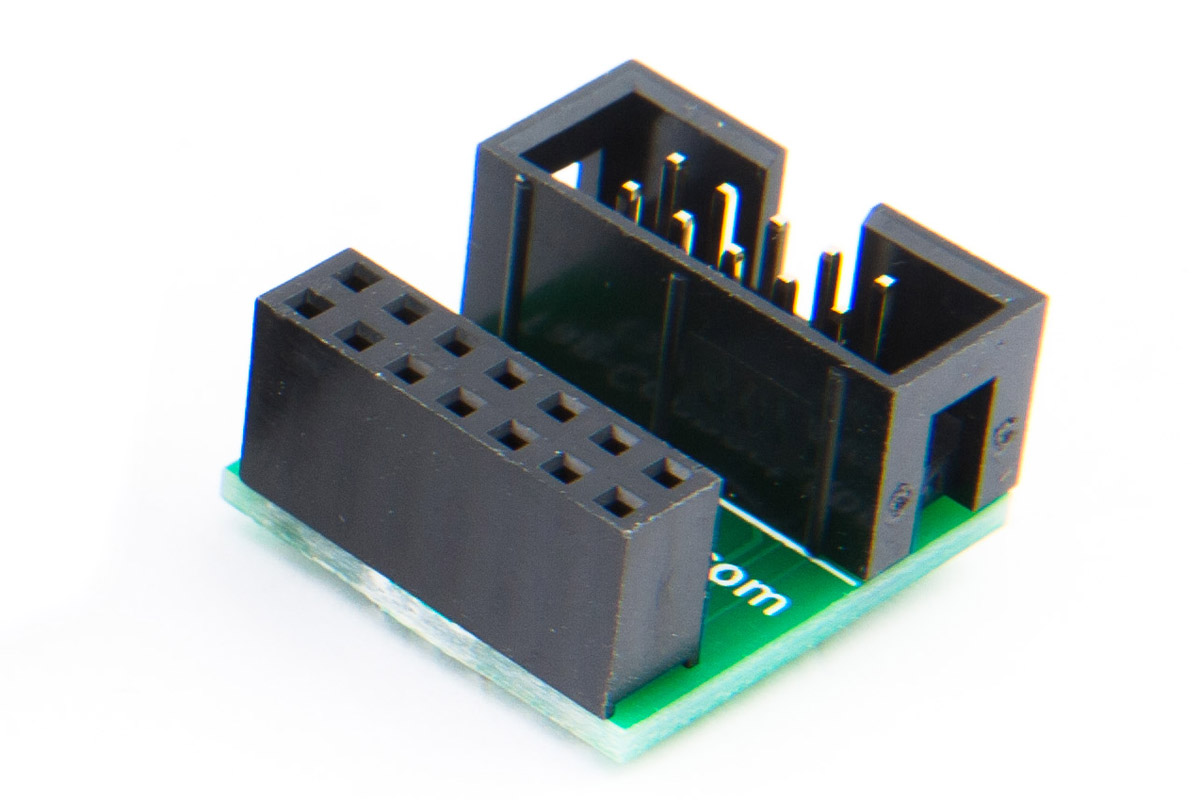

TC-C2000-F-90 Adapter to use TC2050-IDC with TI DSP’s$39.00 AVAILABLE TC-C2000-F-90 Adapter to use TC2050-IDC with TI DSP’s quantity Add to cart SKU: TC-C2000-F-90 Categories: Adapters, Adapters for FPGAs/DSPs/CPLDs, Other Adapters (MSP430, Renesas etc) Description The TC-C2000-F-90 adapter has female 0.1″ pitch connector with no key. The TC-C2000 adapter enables use of Tag-Connect TC2050-IDC or TC2050-IDC-NL cables with TI DSP’s and processors. The onboard EMU0 and EMU1 pull-up resistors can eliminate otherwise unused pull-ups on each and every target board. For normal use where the JTAG clock is sourced by the programmer / debugger solder-bridge jumpers are configured so that TCK is connected to TCK_RET on the adapter and TCK_RET is not needed on the target PCB. See TC-2000-F-180 and TC-C2000-M for other connector options. Related products TC-XILINX6-M Xilinx 14-pin 2mm to 6-pin 0.1″ TC2030-IDC Adapter $29.95 Add to cart TC2050-XILINX $29.95 Add to cart TC-LATTICE $29.95 Add to cart ARM20-CTX 20-Pin to TC2030-IDC Adapter for Cortex TC-C2000-M
