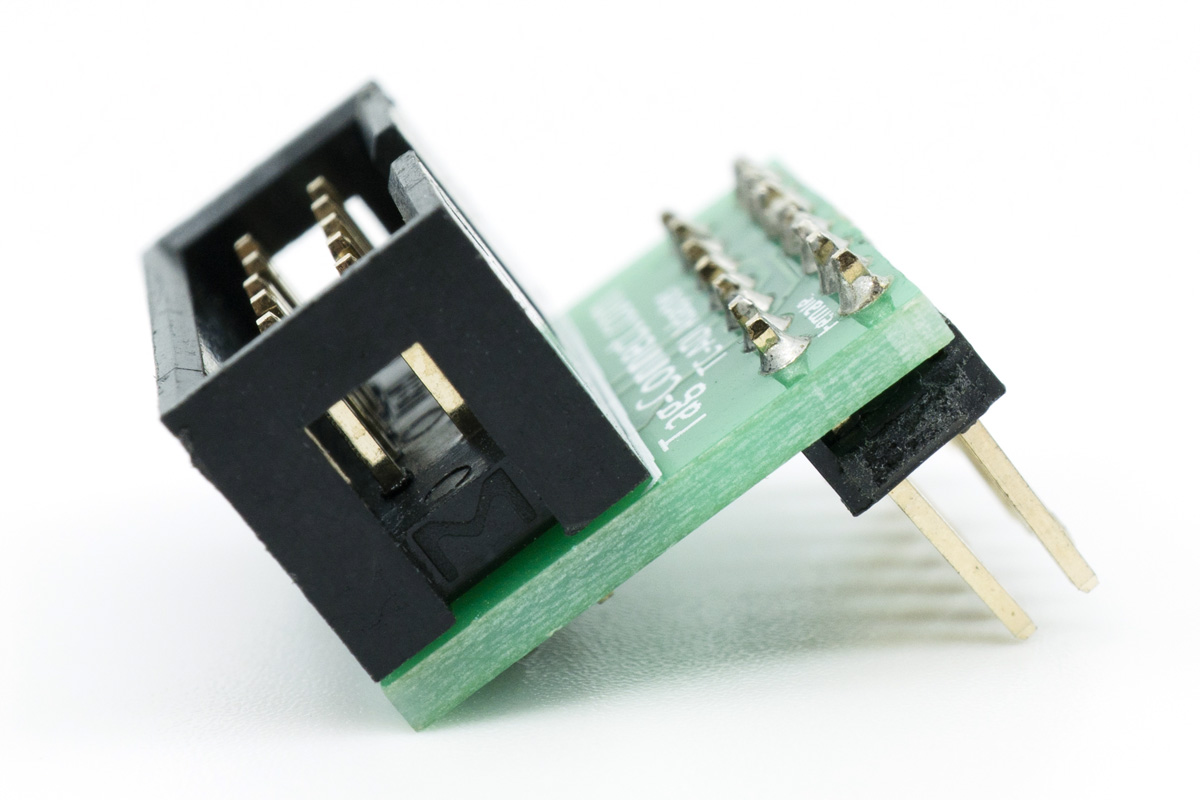

TC-ADI-M Analog Devices SHARC Adapter$29.95 AVAILABLE TC-ADI-M Analog Devices SHARC Adapter quantity Add to cart SKU: TC-ADI-M Categories: Adapters, Adapters for FPGAs/DSPs/CPLDs Description The TC-ADI-M adapter works with Analog Devices SHARC and other ADI devices. It is designed to work with our 10-pin TC2050-IDC and TC2050-IDC-NL cables and gives the same 10-pin target board footprint for ARM JTAG that we’ve established with our TC2050-ARM2010 adapter. See also the TC-ADI adapter. 10-Pin Header for TC2050-IDC (-NL) 14-Pin Male Pin Header Pin 3 (KEY) Removed VDDIO 1 2 TMS GND 1 2 EMU GND 3 4 TCK KEY 3 4 GND GND 5 6 TDO VDDIO 5 6 TMS GND 7 8 TDI GND 7 8 TCK TRST 9 10 EMU GND 9 10 TRST GND 11 12 TDI GND 13 14 TDO Related products TC2050-ARM2010-M ARM 20-pin Male to TC2050 Adapter $29.95 Add to cart TC2050-2X10 0.1″ 20-pin to 2 x 10-Pin Header Adapter $29.00 Add to cart TC-XILINX6 Xilinx 14-pin 2mm to 6-pin 0.1″ TC2030-IDC Adapter $29.95 Add to cart TC-ADI Analog Devices SHARC Adapter TC-LATTICE-10
