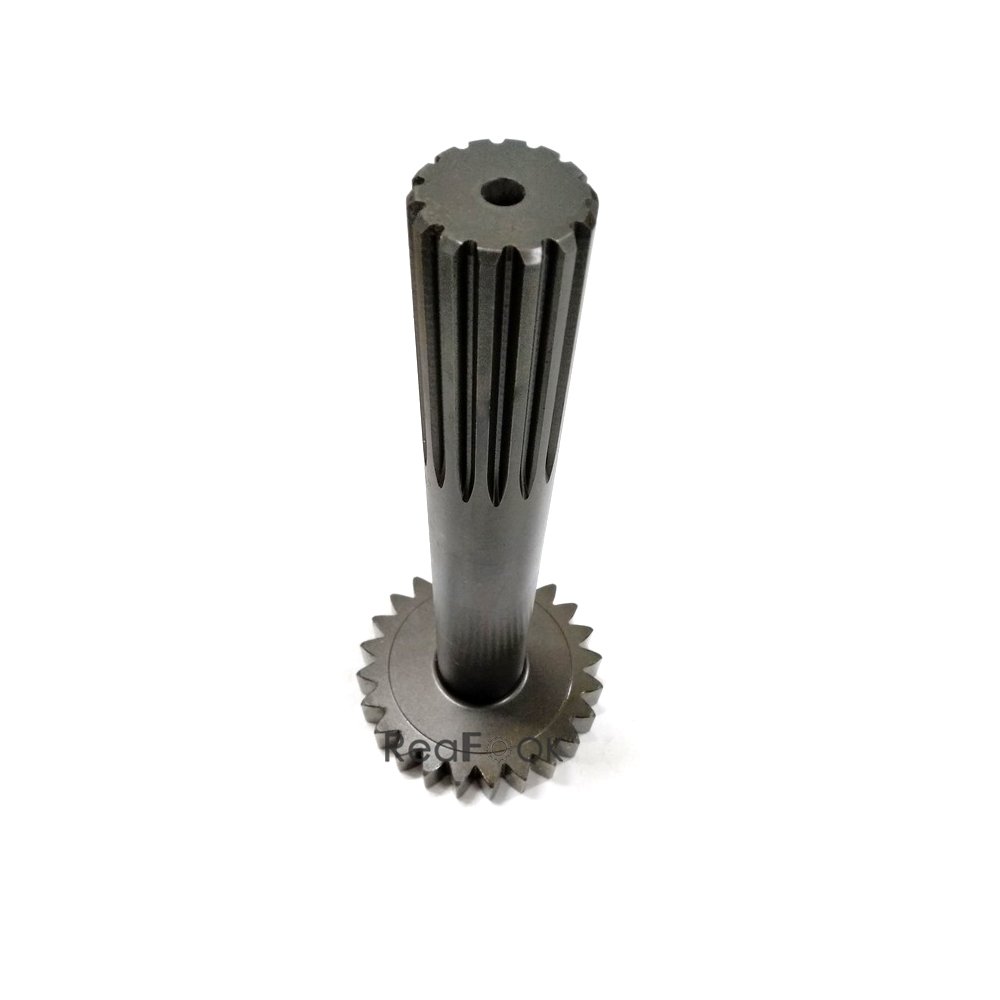

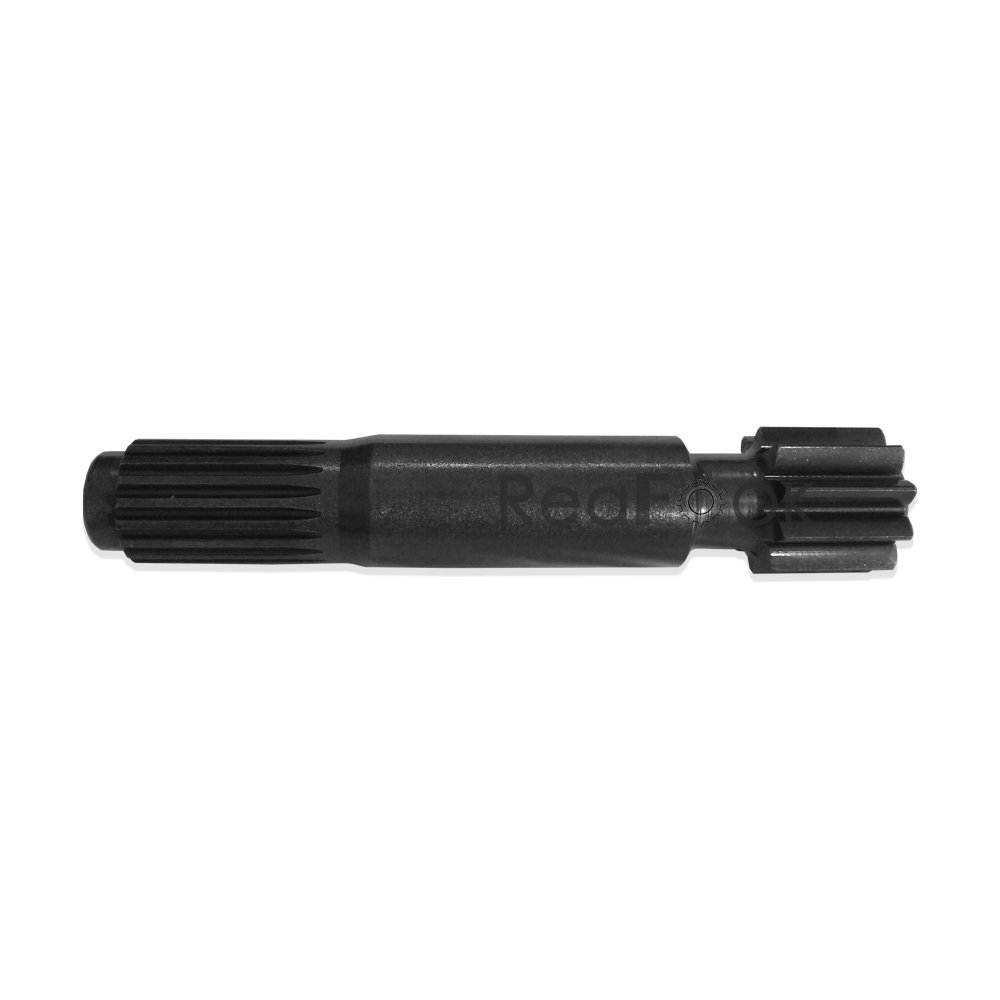

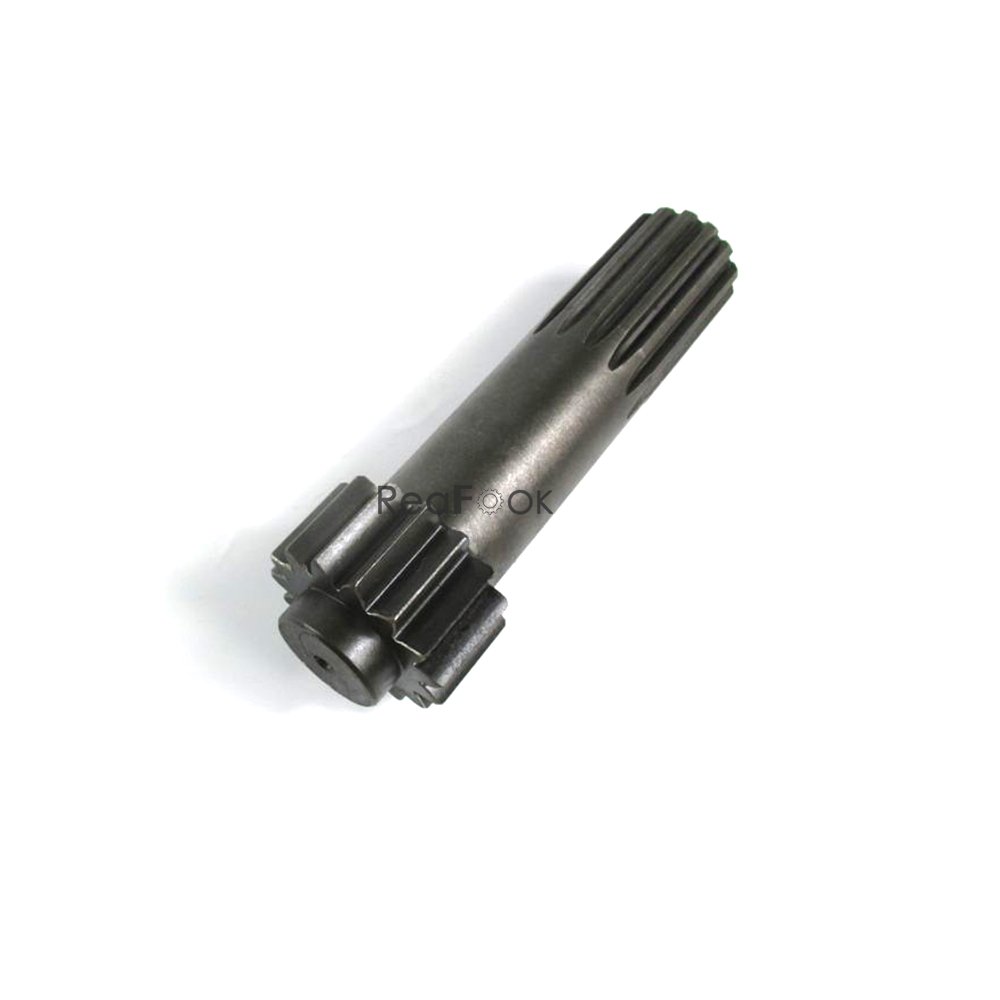

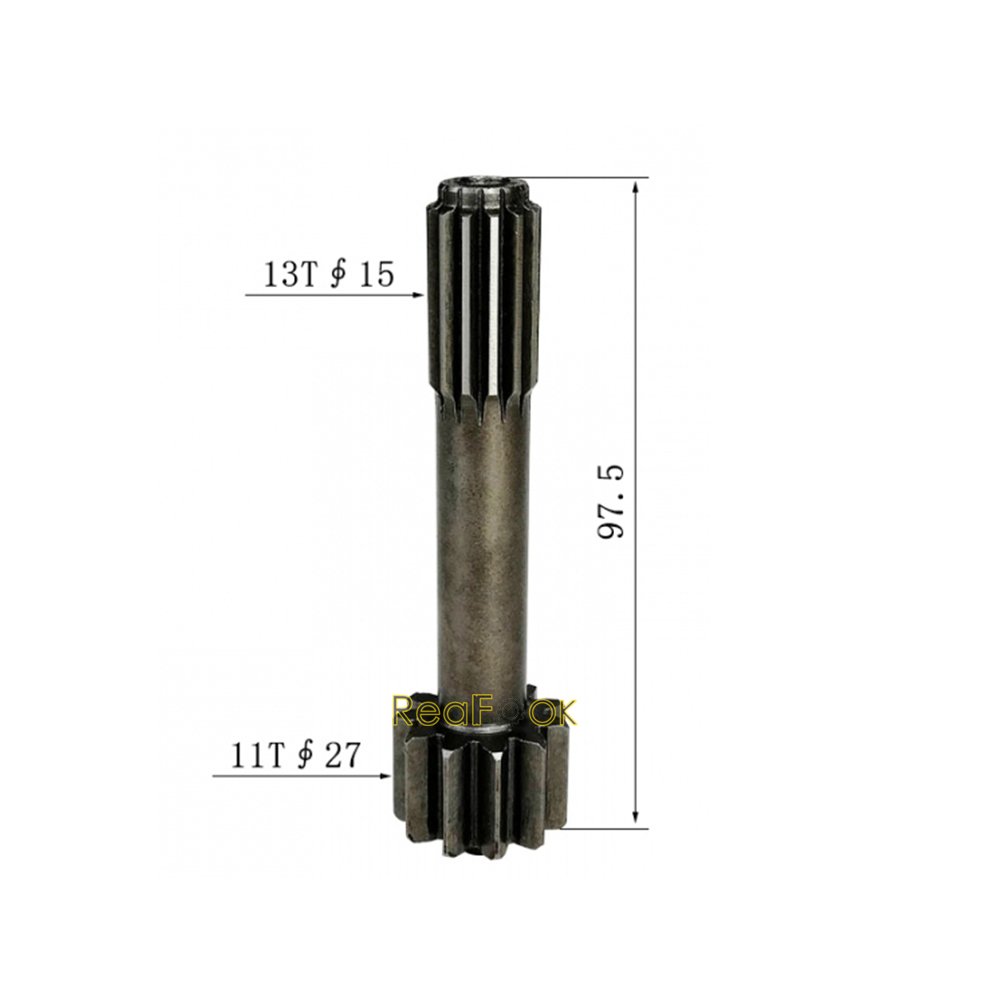

Final Drive Travel Reduction Sun Gear 099-0203 Fit Excavator Caterpillar E120B

Product Name: Sun Gear Shaft, 1st Stage Reference Part Number: 099-0203 Compatible Machine: Excavator Caterpillar E120B…Description: A Sun Gear is designed to transfer torque from the input shaft to the planetary Gears, which in turn transmit power to the output shaft.Pos. Part No Qty Parts name Comments 71. 8T-4829 [12] BOLT 72. 099-0202 [3] SHAFT 73. 094-0584 [12] WASHER 74. 099-0207 [3] GEAR 75. 096-3082 [4] PIN 76. 099-0218 [2] SPACER 77. 093-6974 [9] BEARING 78. 095-0886 [6] PIN 79. 099-3996 [2] PLUG 80. 095-1592 [2] O-RING 81. 099-0201 [3] SHAFT 82. 099-0213 [1] PLATE 83. 099-0214 C PLATE 099-0215 C PLATE 099-0216 C PLATE 099-0217 C PLATE 84. 099-0205 [3] GEAR 85. 099-0204 [1] GEAR 86. 099-0203 [1] GEAR 87. 094-0577 C PLATE 094-0578 C PLATE 094-0579 C PLATE 094-0580 C PLATE 88. 095-0968 [1] PLUG 89. 093-1727 [1] RING 90. 093-1728 [1] RING 91. 099-3995 [1] COVER 92. 8T-5001 [16] BOLT 93. 099-0197 [16] WASHER 94. 099-0209 [1] CARRIER 95. 099-0206 [1] GEAR 96. 099-0208 [1] GEAR 97. 099-0210 [1] CARRIER 98. 099-0200 [1] COUPLING 99. 093-7828 [4] PIN 093-8759 B SHIM 093-8760 B SHIM 093-8761 B SHIM 095-9276 B SHIM 095-9277 B SHIM 093-8762 B SHIM 096-0045 B SHIM 096-0857 B SHIM 101. 096-6263 [2] BEARING 102. 099-0212 [1] CASING 085-6799 [1] CASING 085-6800 [1] CASING 103. 099-0198 [2] SEAL, FLOATING 104. 086-1311 [2] O-RING
