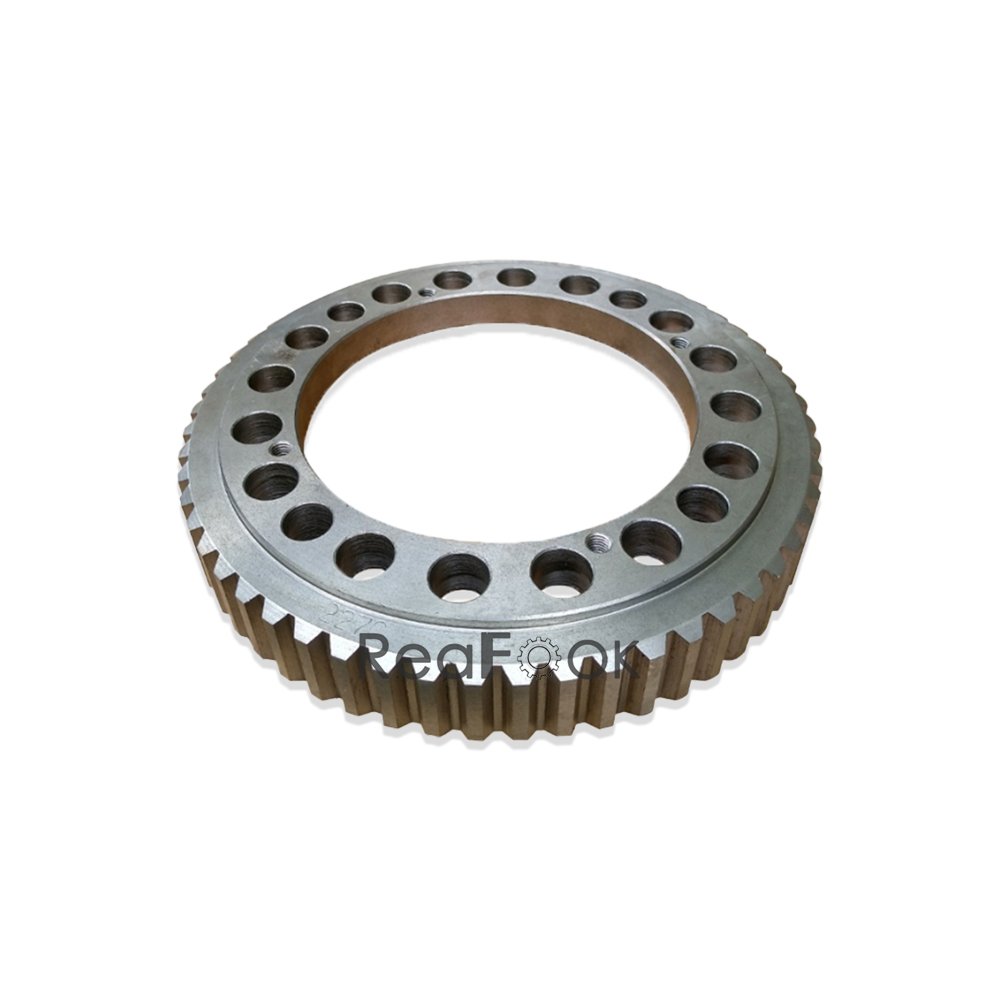

Final Drive Coupling Gear 7Y-0219 Fit Caterpillar Excavator CAT 320B 322BL 325 325L 325B

Product Name: Coupling Gear Reference Part Number: 7Y-0219, 7Y0219 Compatible Machine: Caterpillar Excavator CAT 320B 322BL 325 325L 325B…Description: The Final Drive Coupling Gear is situated within the equipment’s drivetrain, connecting the transmission output shaft to the drive wheels’ input shaft for efficient torque transmission, enabling smooth propulsion and maneuverability of the equipment.Pos. Part No Qty Parts name Comments 1. 114-1386 [1] HOUSING 2. 3T-8500 [1] SEAL GP 3. 7Y-5217 [16] BOLT 4. 110-7056 [3] GEAR (Z=23) 5. 110-7049 [1] GEAR (Z=14) 6. 094-0574 [2] RINGRETAINING 7. 110-7051 [1] GEAR (Z=23) 8. 110-7059 [1] CARRIER 9. 114-1540 [4] DOWEL 10. 168-8452 [2] BEARING 11. 7Y-0746 B [1] SHIM (T=0.15mm) 7Y-0747 B [1] SHIM (T=0.0.3mm) 7Y-0748B [1] SHIM (T=0.4mm) 7Y-0749 B [1] SHIM (T=0.5mm) 7Y-0750 B [1] SHIM (T=0.6mm) 7Y-0751 B[1] SHIM (T=0.7mm) 7Y-0752 B [1] SHIM (T=0.8mm) 7Y-0753 B [1] SHIM (T=1.0mm) 7Y-0754 B [1] SHIM (T=1.6mm) 12. 7Y-0219 [1] GEAR (Z=58) 13. 110-7058 [1] CARRIER 14. 110-7055 [1] GEAR (Z=66) 15. 7M-8485 [2] SEAL-O-RING (ID=29.74mm) 16. 3E-2338 [2] PLUG 17. 096-3216 [2] SETSCREW 18. 7Y-0248 [1] SPACER B USE AS REQUIRED
