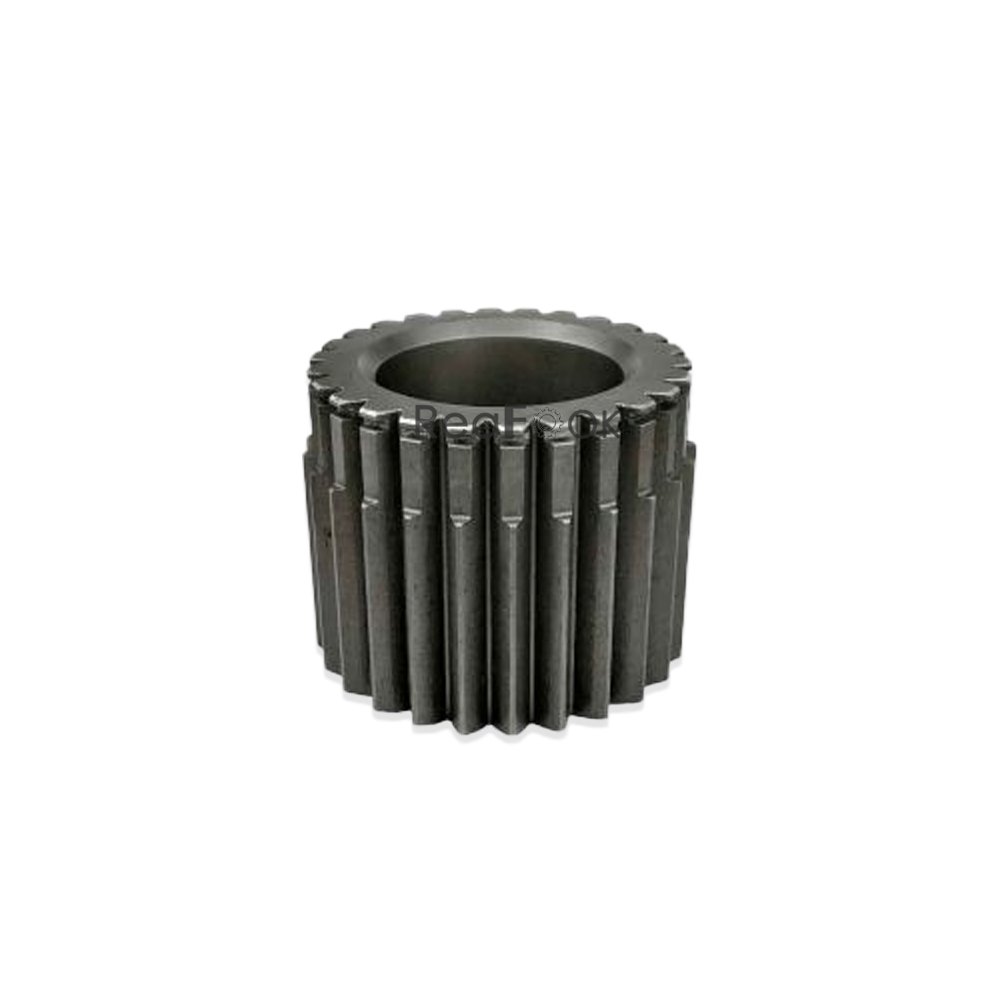

Final Drive Travel Gearbox Sun Gear 169-5590 Fit Caterpillar Excavator CAT 320C 320D 322C 323D 323E 324D 324E 325C 325D 326D 329D

Product Name: Sun Gear Reference Part Number: 169-5590, 1695590 Compatible Machine: Caterpillar Excavator CAT 320C 320D 322C 323D 323E 324D 324E 325C 325D 326D 329D…Description: A spur gear is the most common type of gear and consists of a cylinder or disk with teeth projected straight outward. A spur gear also generally looks the same from either side, since the teeth are straight from one side to the other.Pos. Part No Qty Parts name 1. 3E-2338 [2] PLUG-PIPE 2. 267-6863 BJ [1] SHIM (0.75-MM THK) 7Y-0752 BJ [1] SHIM (0.8-MM THK) 267-6864BJ [1] SHIM (0.85-MM THK) 267-6865 BJ [1] SHIM (0.9-MM THK) 267-6866 BJ [1] SHIM (0.95-MM THK) 7Y-0753 BJ [1] SHIM (1-MM THK) 267-6867 BJ [1] SHIM (1.2-MM THK) 267-6868 BJ [1] SHIM (1.4-MM THK) 7Y-0754 BJ [1] SHIM (1.6-MM THK) 267-6869 BJ [1] SHIM (1.8-MM THK) 267-6870 BJ [1] SHIM (2-MM THK) 267-6871 BJ [1] SHIM (2.3-MM THK) 5. 094-0578 B [1] PLATE (8-MM THK) 094-0579 B [1] PLATE (9-MM THK) 094-0580 B [1] PLATE (10-MM THK) 8. 094-1528 [12] WASHER (53X84X1-MM THK) 9. 114-1540 J [4] PIN-DOWEL 10. 168-8452 J [2] BALL BEARING 11. 169-5589 [1] GEAR-SUN (24-TEETH) 12. 169-5590 [1] GEAR-SUN (24-TEETH) 13. 169-5592 [3] GEAR PLANETARY (23-TEETH) 14. 169-5593 [3] GEAR PLANETARY (23-TEETH) 15. 169-5601 [3] SHAFT PLANETARY 16. 169-5602 [3] SHAFT PLANETARY 17. 171-9387 [1] GEAR-RING (64-TEETH) 18. 191-2569 [3] BEARING AS (CAGED ROLLER) 19. 191-2570 [6] BEARING AS (CAGED ROLLER) 20. 191-2571 [1] CARRIER PLANETARY 21. 191-2676 [1] GEAR-RING (72-TEETH) 22. 191-2683 [1] GEAR-SUN (20-TEETH) 23. 191-2684 [3] GEAR PLANETARY (21-TEETH) 24. 191-2685 [3] BEARING AS 25. 191-2686 [1] CARRIER AS 191-2687 [3] RACE-BEARING 26. 191-2689 [3] WASHER (34X70X1-MM THK) 27. 191-2690 [3] WASHER (42.3X70X1-MM THK) 28. 199-4503 [1] COVER 29. 207-1571 J [1] SEAL GP-DUOCONE 214-3570 [2] RING-TORIC 30. 267-6797 J [1] HOUSINGMOTOR 31. 267-6798 J [1] HOUSING 32. 267-6799 [1] CARRIER PLANETARY 33. 267-6800 J [1] GEAR-COUPLING 43. 093-1731 [2] RING-RETAINING 44. 095-0891 [6] PIN-SPRING 45. 096-0433 [3] RING-RETAINING 46. 096-3216 M [2] SETSCREWSOCKET (M12X1.75X12-MM) 47. 171-9298 [1] SEAL-O-RING 48. 179-8733 M [16] BOLT (M20X2.5X170-MM) 49. 7M-8485 [2] SEAL-O-RING 50. 7Y-0595 [3] SPACER (58X79.6X6-MM THK) 51. 7Y-5217 JM [16] BOLT-SOCKET HEAD (M20X2.5X70-MM) 52. 8T-3282 J [16] WASHER-HARD (22X35X3.5-MM THK) 53. 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK) 54. 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM) 55. 1U-8846 B SEALANTGASKETAVAILABLE REPAIR KIT(S): 267-6818 J [1] KIT-FINAL DRIVE BEARING B USE AS REQUIRED J KIT MARKED J SERVICES PART(S) MARKED J M METRIC PART
